Beskrivning
Beskrivning
- EV EKX 15P
- 15" 2-vägs aktiv högtalare
- Klass D förstärkare
- Intelligent värmehantering
- Kompakt och hållbar design
- Intuitiv meny

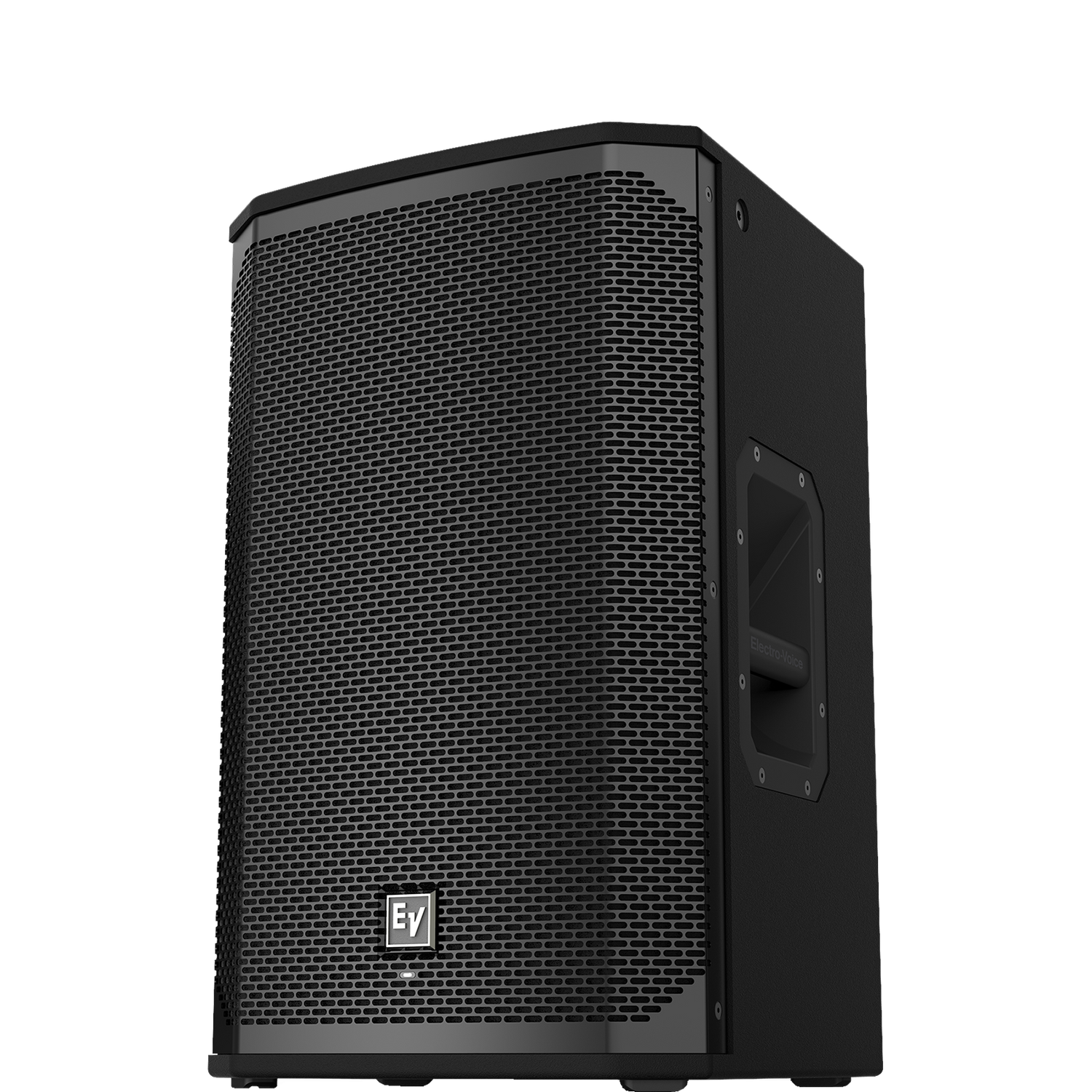

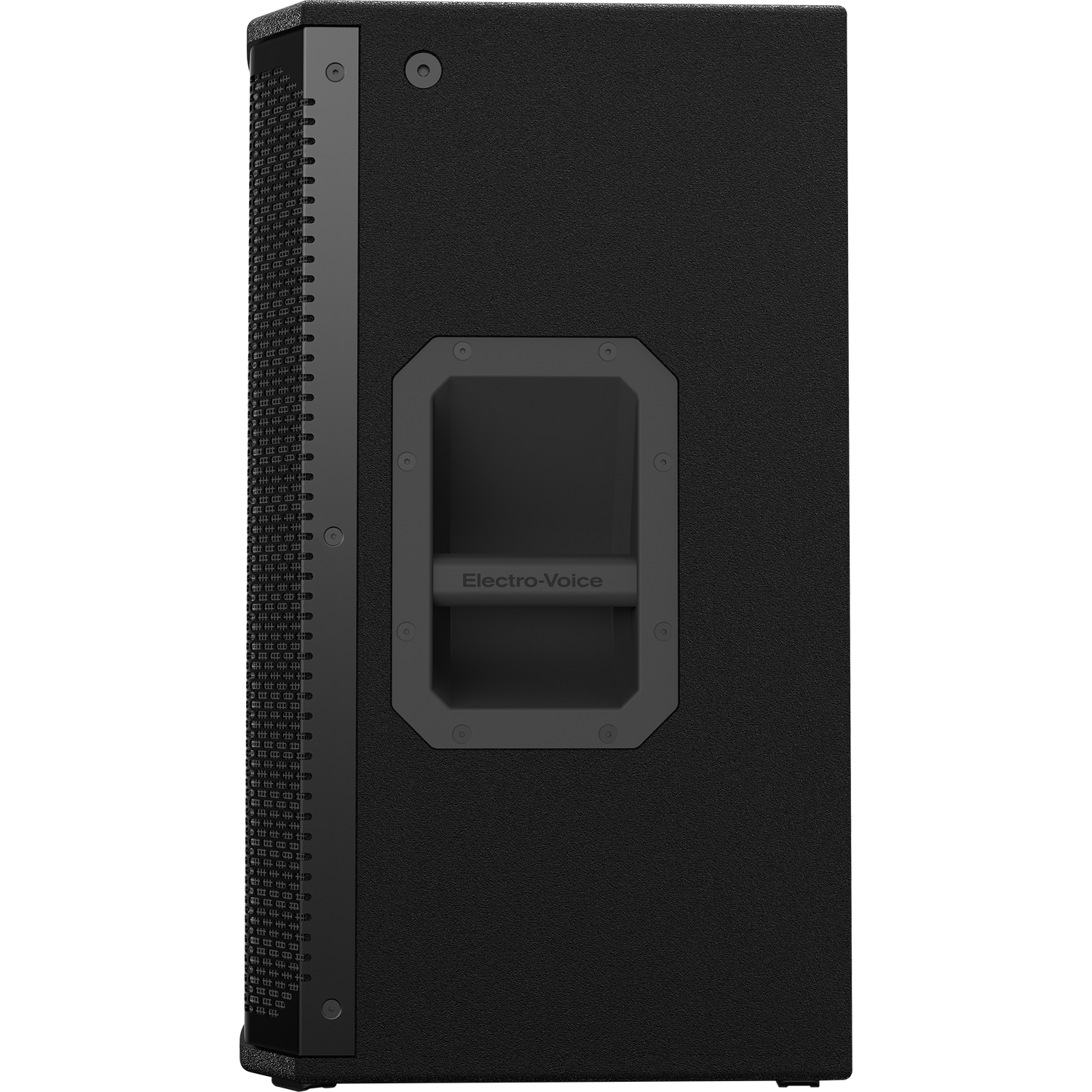

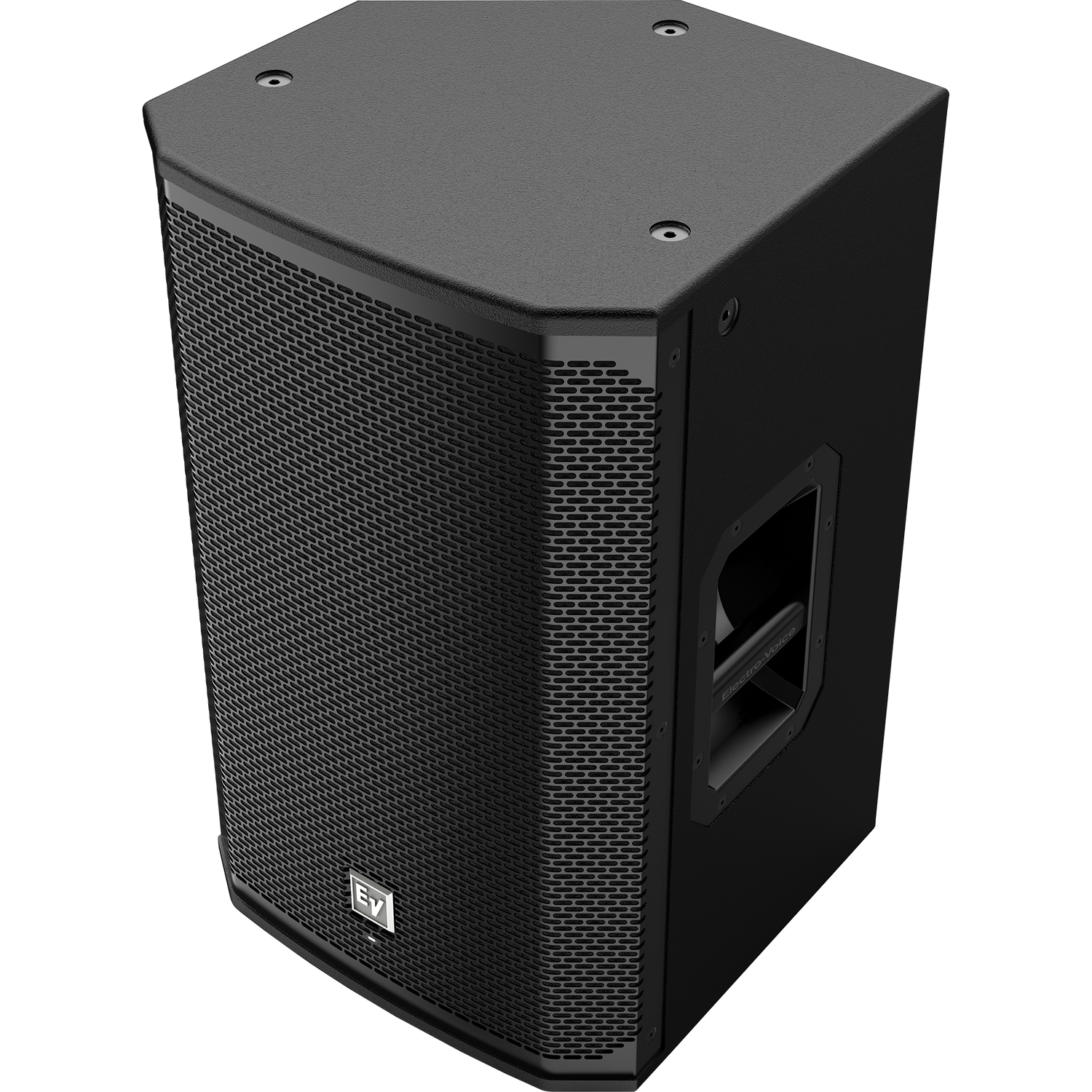

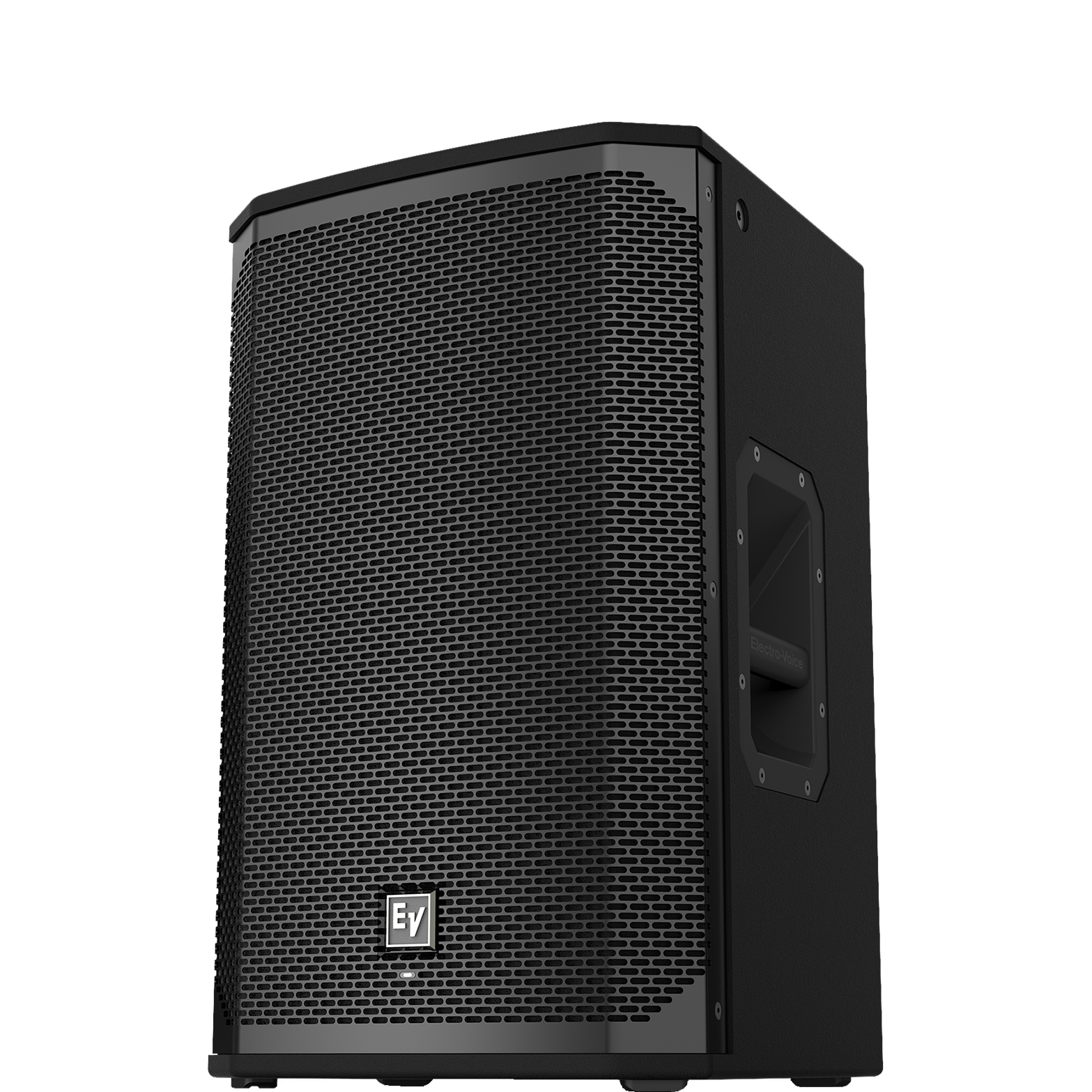

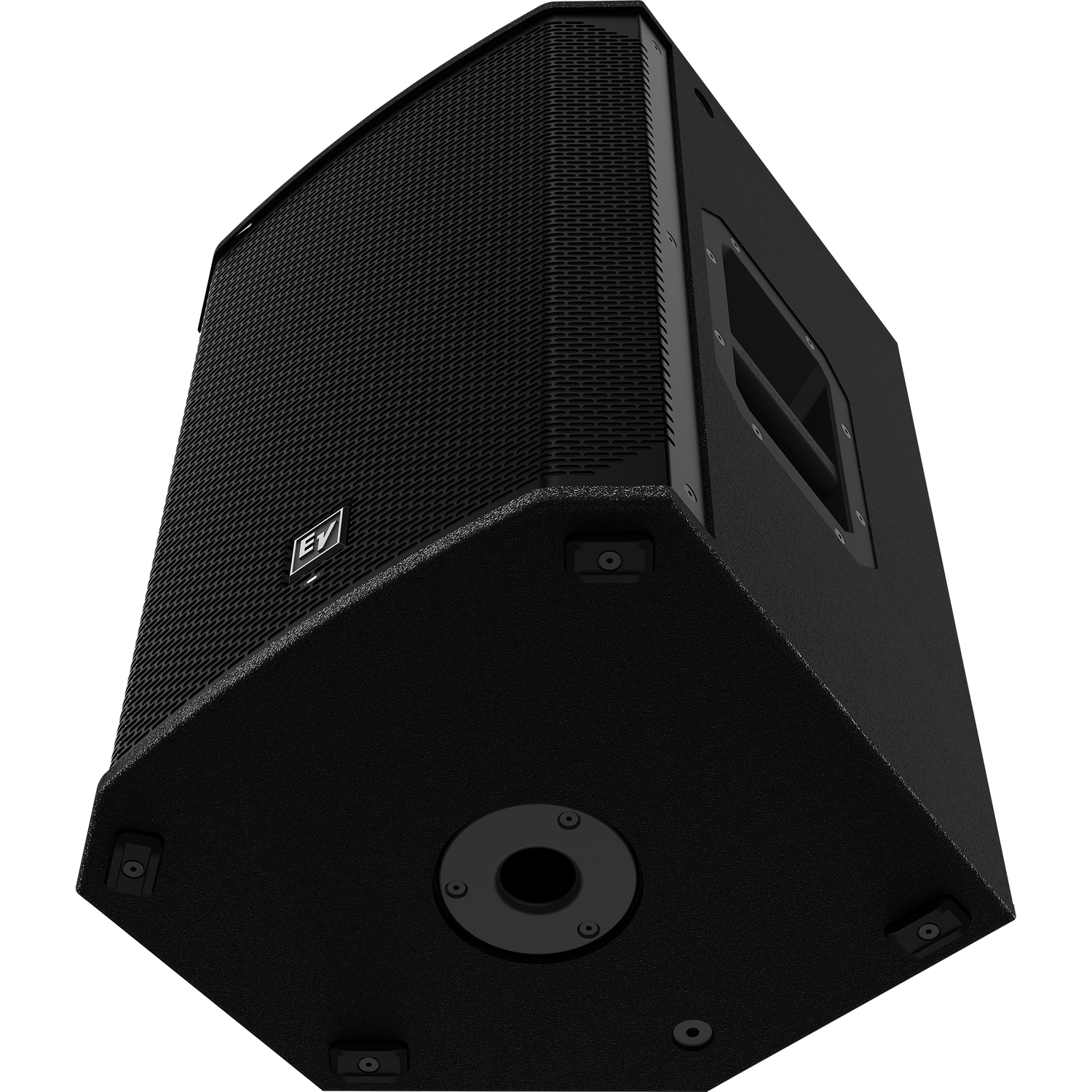

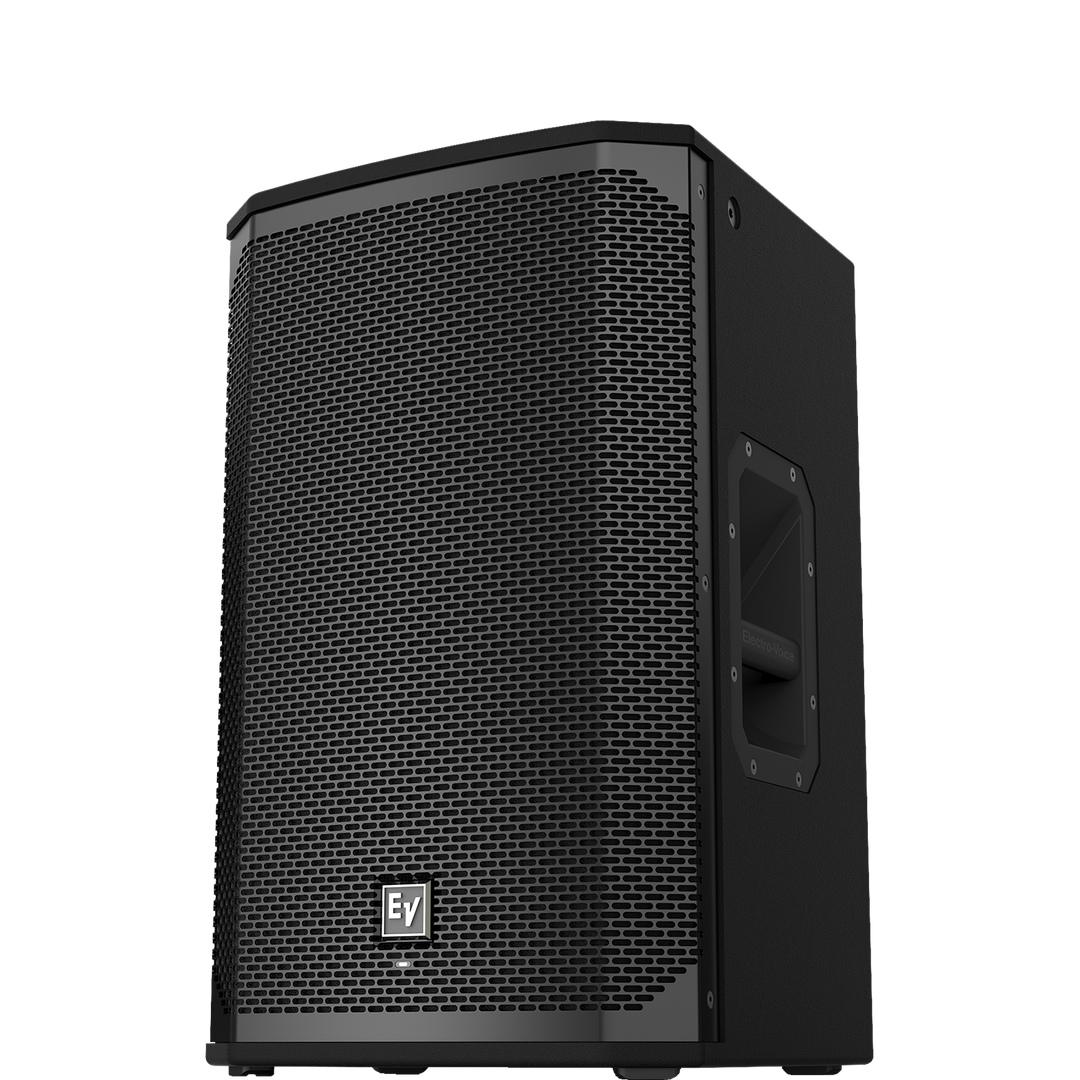

Electro-Voice EKX-15P aktiv högtalare
EV EKX-15P är en 15? 2-vägs aktiv högtalare med trähölje och EVCoat ytbehandling för en kompakt och hållbar design. Högtalaren har en intuitiv meny med navigering via LCD, samt QuickSmartDSP-funktioner.
Klass D förstärkare
Med en 1500 W klass D-förstärkare kan EV EKX 15 P ger upp till 134 dB ljud.
Intelligent värmehantering
Electro-Voice EKX-15P har inbyggd intelligent termisk hantering med fläktfunktion, vilket säkerställer optimal driftsäkerhet och långvarig prestanda.
Tekniska specifikationer
Tekniska specifikationer
Specifications | |
| Connector Type | (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 60 ° |
| Crossover Frequency | 1.7 k Hz |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Frequency Response (-10 dB) | 48 Hz - 20 kHz Hz Full space measurement using the music DSP preset |
| Frequency Response (-3 dB) | 55 Hz - 18 kHz Hz Full space measurement using the music DSP preset |
| Grill | 18 AWG steel with powdercoat |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| LF Transducer | EVS-15M 381 mm (15 in) |
| Maximum SPL | 134 dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output |
| Power Consumption | 1.8 A Current rating is 1/8 power |
| Power Rating | 1500 W |
| Shipping Weight | 29.5 kg (65.04 lbs) |
| Suspension | (8) M10 threaded mounting points |
| Height | 16RU 685 mm (26.97") |
| Width | 432 mm (17.01") |
| Depth | 429 mm (16.89") |
| Weight Net | 24.4 kg (53.79 lbs) |
